PCIe总线频谱分析卡

桑达的分数是第三代光谱测量和分析卡提供高端性能在低价格。它可以作为一个独立的频谱分析仪在有线或卫星，陆地无线网络或可以很容易地

集成到一个卫星终端，设备外壳或作为一个较大的测量网络。

Decimator D3 uses state of the art digital technology and Fast Fourier Transformations to make lightning fast and
accurate measurements. With a very low noise floor and large dynamic range, it is well-suited to measure any
type of satellite, cable or terrestrial wireless carrier, including very small carriers, beacon signals and for
carrier monitoring applications. Decimator accepts all signals from 5 MHz to 3 GHz and input power levels
ranging from –110 to +5 dBm. RBW varies from 1 Hz to 15 MHz. The Decimator can be connected to an
external 10 MHz reference for improved frequency accuracy and stability. All data communications with the
Decimator occurs via its built-in Ethernet port.
It is only 4” x 7” x 0.8” and is therefore ideal for integration into small spaces. It can be installed in any
enclosure or computer chassis. It is a half size PCI express (PCIe) card and can be installed in an available
computer PCIe slot, providing power to the card. Alternately, it can be mounted on standoffs and powered
through a 3-pin connector (12 and 3.3 to 5 Vdc) for integration into any enclosure.

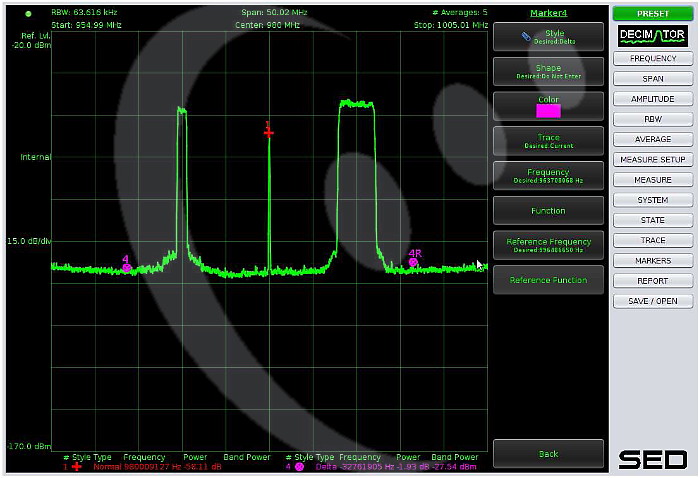

The Decimator’s powerful Graphical User Interface (GUI) is available using any standard web browser.
No additional software is required. The GUI is very easy to use and operates like most traditional spectrum
analyzers. It provides user-selectable colors for markers and traces, allows storage of multiple traces and
provides measurement reporting. The Decimator GUI also includes a powerful built-in Carrier Monitoring
function, which provides notification via email or SNMP of carrier measurements that exceed user-defined
limits, offering you peace of mind that up to 100 of your carriers are operating as expected.

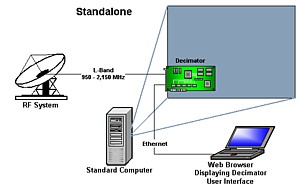

The Decimator provides network access to all technical staff connected to the facility network or a corporate
wide area network. This allows all technical staff the ability to monitor feeds and carriers at any time and
from any location in the world using only a web browser.
For integration into a satellite terminal or measurement system, the Decimator can be operated via its
built-in GUI or the user can create a separate user interface using the publicly available API. An SNMP
status interface is also provided.

技术指标：

RF Input:
Input Frequency Range: 5 MHz to 3,000 MHz
Useable Dynamic Range: -110 to +5 dBm (aggregate)
Noise Floor: -160 dBm/Hz typical at min atten
-160 dBm/Hz typical at max atten
Phase Noise: -80 dBc/Hz at 1 kHz offset
(worst case at 3 GHz) -95 dBc/Hz at 100 kHz offset
-125 dBc/Hz at 1 MHz offset
Maximum Safe Input: +15 dBm
Measurements:
Amplitude Accuracy: ± 0.5 dB (at 25°C)1
± 1.0 dB (0 to 55°C)
Frequency Accuracy: ± 2.6 ppm (internal)
or as per external reference
Frequency Resolution: 1 Hz
Resolution Bandwidth: 1 Hz to 15 MHz
Analysis Bandwidth: up to 220 MHz
Spurious:
Images: < -55 dBc (typical)
Aliasing: < -55 dBc (typical)
DC Offset (time domain): < -30 dBc (typical)
Averaging: up to 255 averages
Other Specifications:
Reference Input: 10 MHz, -5 dBm to +13 dBm
Control Interface: TCP/IP API, SNMP, HTTP
Power Requirements: PCIe or 12/3.3 to 5 Vdc, 18W max.
Operational Temperature Range: 0 to 55°C
Modes of Operation:
Raw Snapshot Mode: Number of IQ time samples is approx 32 million
Linear Power/Bin (4096 samples, up to 255 averages)
Log Power/Bin (4096 samples, up to 255 averages)
Raw IQ Samples - decimated 16 - 4092 in steps of 4 - sampling
frequency up to 3.7 MHz
Selectable Spectral Inversion
Programmatic measurement and control over ethernet based API
Notes:
1. Measurement conditions: 10 averages, input level between -8 dBm and -68 dBm,
3 sigma.
2. Resolution bandwidths auto or manual adjustable.
3. Expected rates with 10 averages, speed optimization.
4. All specification at 25oC unless otherwise noted

主要特点：
Overview
- covers full satellite L-band plus cable and
wireless bands from 5 MHz to 3 GHz
- built-in Carrier Monitoring function
- external 10 MHz reference or internal reference
- web browser or API control
- SNMP status interface
- installs in half size PCIe slot or equipment
enclosure
Physical Interfaces
RF inputs: SMA, 50 ohms
Control: RJ-45
Reference: SMA, 50 ohms
Power: PCIe or 3-pin Molex connector
Mechanical: half size PCIe card,
6.875 by 4.2 inches
FFT sizes Windows
128 Flattop
256 Hanning
512 Hamming
1024 Uniform
2048 Blackman-Harris
4096
8192
Measurement Speed3
500 MHz span, 1 MHz RBW, 200 ms
200 MHz span, 30 kHz RBW, 630 ms
80 MHz span, 100 kHz RBW, 170 ms
3.5 MHz span, 8 kHz RBW, 90 ms
Custom designed versions supporting other
frequency bands or form factors are available.
Contact SED for more information.
