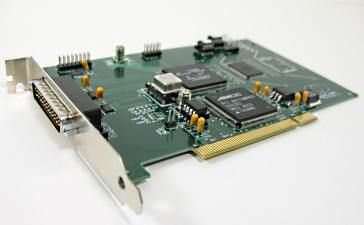

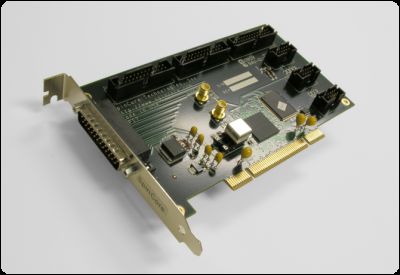

PCI总线;100MHz,24路高速可编程TTL,脉冲波形发生器卡

100MHz时钟频率,独立24路输出,每通道输出25mA电流,板载内存:64K,TTL,脉冲输出。
生产厂商: 迪阳公司代理 产品型号: PB24-100-64k
产品简介: 100MHz时钟频率,独立24路输出,每通道输出25mA电流,板载内存:64K,TTL,脉冲输出。

PulseBlasterTM is a general-purpose, multichannel, programmable TTL pulse generator / digital word generator. It offers up to 24 independently controlled channels, up to 64k instruction words, powerful program-flow features, and variable output rates ranging from ns to days per interval.

PulseBlasterTM implements a novel 80-bit Very-Long Instruction Word (VLIW) architecture. Due to its versatility and intelligence, it is most commonly used as a powerful timing engine for applications requiring sophisticated pulse sequences and output patterns, precision timing of wide-ranging intervals, and complex system control.

The standard form factor is PCI, and standard clock frequency is 100 MHz. Compact-PCI boards and higher clock rates are available, currently up to 500 MHz.

Key Specifications

  • Standard clock frequency of 100 MHz
  • High-speed models available, currently up to 500 MHz clock frequency
  • up to 24 independently controlled output channels
  • 25 mA output current per channel
  • DB-25 bracket mounted connector
  • IDC headers for on-board access to signals.
  • Programmable pulse lengths from five clock periods (50 ns at 100 MHz), to 7 days per instruction.  Pulses as short as 2.0 ns are available (PulseBlasterESR-PRO model at 500 MHz).
  • 10 ns pulse resolution (at 100 MHz)
  • 512, 4k, 32k, 64k pulse program instruction words
  • Advanced pulse-program flow control: nested loops (16 levels), branches, and subroutines
  • 20-bit loop counter (over 1 million events/repetitions)
  • Software and hardware triggering, up to 5 MHz retriggering frequency
  • PCI or Compact-PCI form factor.
高速可编程TTL、脉冲波形发生器卡:

型号
通道数
时钟频率
存储深度
短脉冲
脉冲分辨率
PB24-100-64k
 24
100 MHz
64K
90ns
10ns
PB24-100-32k
 24
100 MHz
32K
90ns
10ns
PB24-100-4k
 24
100 MHz
4K
50ns
10ns
PB24-100-64k
 16
100 MHz
64K
90ns
10ns
PB24-100-64k
 12
100MHz
64K
90ns
10ns
PB24-100-4k
 12
100 MHz
4K
50ns
10ns







详细技术指标请索要:  sales@pc17.com.cn         tech@pc17.com.cn
